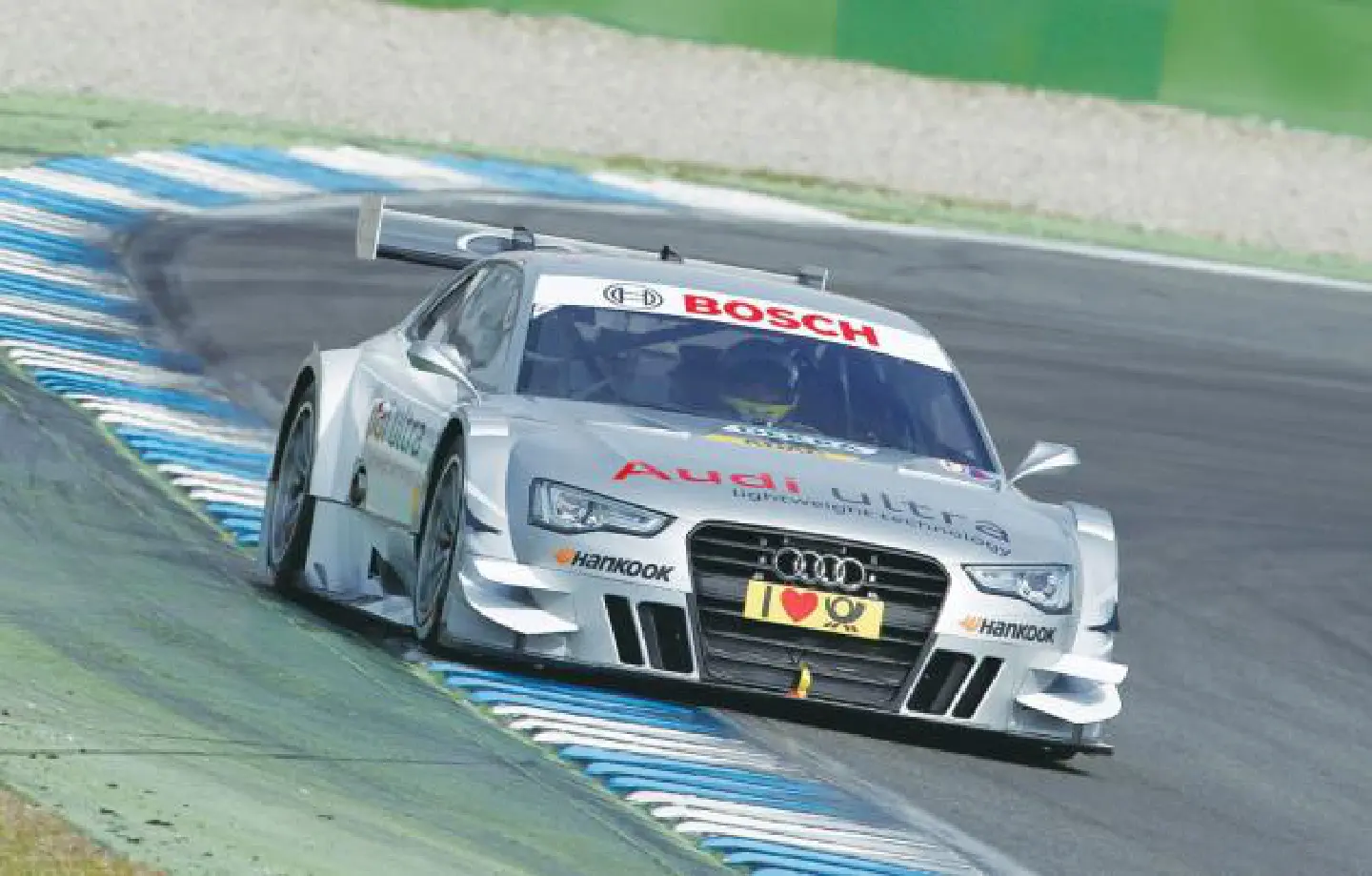

The Audi A5 DTM: a high-tech jigsaw puzzle consisting of over 4,000 parts

In just three weeks from now the 2012 DTM will start at  Hockenheimring, which marks the beginning of a new era for the popular racing series.

V8, TT, A4 – each of the three model ranges with which Audi has previously competed in the DTM ultimately won at least one title. After eight successful years with the A4, the brand with the four rings is banking on a two-door coupe for its factory commitment in the most popular international touring car racing series for the first time: the A5.

The three long-standing Audi Sport teams – Abt Sportsline, Phoenix and Rosberg – are fielding a total of eight new Audi A5 DTM cars, which means that Audi Sport will be setting an internal record even before the first race, as such a large number of new vehicles has never before been built for a new DTM season. In 2004, on Audi’s return to the DTM with a factory commitment, there were six vehicles. Afterwards, a maximum of four new race cars were built per year.

In 2012, there will only be new cars in the field – for the first time since the DTM’s re-launch in 2000. “Developing a new race car for a new set of technical regulations and then duplicating it eight times and assuring there will be a supply of spare parts in the process is a very difficult logistical challenge. This feat could only be achieved though major efforts by the whole Audi squad,” explains the head of Audi Motorsport Wolfgang Ullrich. “I’m convinced, though, that this will pay off, as we’ve got the chance to turn the DTM into the world’s best touring car series this year.”

All three factory teams were involved in the development and track tests of the new Audi A5 DTM right from the beginning and will thus start the new DTM era with equal opportunities. From the first track tests at Lausitzring on September 12, 2011, through to the homologation of the A5 DTM on March 1, 2012, they formed a test team together with Audi Sport that reeled off around 30,000 test kilometres.

Assembly of the race cars was begun afterwards at Audi Sport in Ingolstadt, performed by the teams’ mechanics. “This way, they’re able to familiarise themselves with even the minutest details of the new cars and are acquiring a certain routine even before the first race,” says Martin Mühlmeier, head of engineering at Audi Sport. An Audi A5 DTM consists of around 4,000 single parts. It takes five people to assemble one vehicle in a little less than two weeks. In the background, the specialists from Audi Sport take care of the required quality assurance, logistics and pre-assembly of various component units.

Up to four DTM vehicles can be simultaneously assembled at Audi Sport, in other words one each per two-car team. The assembly process starts with the installation of the monocoque, one of currently 59 components which are identical to all DTM vehicles of the three manufacturers. Then the front end with the engine, the front crash structure and the rear end including the clutch, transmission and the rear crash structure are “married” with the chassis.

“This requires extreme care,” stresses Stefan Aicher, head of vehicle design at Audi Sport. The smallest inaccuracy that occurs while putting together the pieces of this high-tech jigsaw puzzle can jeopardise the “title defence” project.

The finished assembly of the total of eight race cars does not mean that the preparations for the season have been completed though. The spare parts have to be produced and, to some extent, pre-assembled into component units as well. “The logistical effort that is behind the DTM’s re-launch is huge,” says Stephan Köster, DTM project manager.
